2004 Tsugami MB-38SY

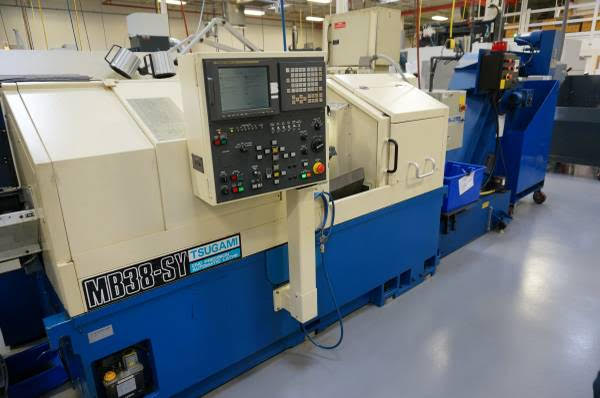

2004 Tsugami MB-38SY  Tsugami MB-38-SY

Iemca Boss 547 Barfeed

Chip Conveyor

Parts Conveyor

Max. Machining Length: 4.92″

Max. Drilling Diameter: 0.63″ in 1045 Steel

Max. Tapping Size : 1/2″ in 1045 Steel

Main Spindle

Number of Spindles: 1

Spindle Speed: 60-6,000rpm

Motor Output : 10/14.7 hp

Spindle Indexing : 5deg.(72div)

Chuck Type: Collet Chuck (Draw/Toggle Type)

Number of Turrets: 2

Number of Mountable Plane: 8 Surfaces,2 Tool Locations per Surface

Indexing Method: Servomotor

Max. Speed of Drive Axis: T2 turret 5.400rpm

Back Spindle

Spindle Speed: 60-6,000rpm

Spindle Indexing: 5deg.(72 div)

Chuck Type: Collet Chuck (Push with Toggle Type)

X1,X2 : 3.15″

Z1 : 3.937″

Z2 : 5.51″

Y (T2 Turret) : 3.15″

Z3 : 11.22″

Rapid Traverse

Z1,Z2 : 787 IPM

X1,X2 : 472 IPM

Z3 : 787 IPM

Specs to be verified by purchaser

Contact us for more information at

Dan 815-236-1069 dan@wwechicago.com
