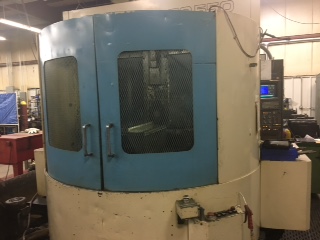

1996 Toyoda FA 550

1996 Toyoda FA550 1996-toyoda-fa550

Control: Fanuc 15M

Manual Hand Held Pulse Generator

Chip Blaster 1000 PSI Coolant thru Spindle

Dual Chip Auger

Chip Conveyor -lift Up Type

Pallet Dimension: 21.6″ x 21.6″

X Axis: 29.5″

Y Axis: 29.5″

Z Axis: 23.6″

Distance Between Spindle Nose & Table Center: 5.9″- 29.5″

Distance Between Spindle Center& Pallet Surface: 1.9″-31.4″

Spindle Nose Taper: 50

Spindle Speed: 12,000RPM

Number of Tools: 60

Tool Diameter¬† X Length: 4.72″ x 15.74″

Tool Change Time Tool to Tool: 2.0 sec.

Spindle Motor: 114″ x 201″

Specs to be verified by purchaser

Contact us for more information at

Dan 815-236-1069 dan@wwechicago.com
