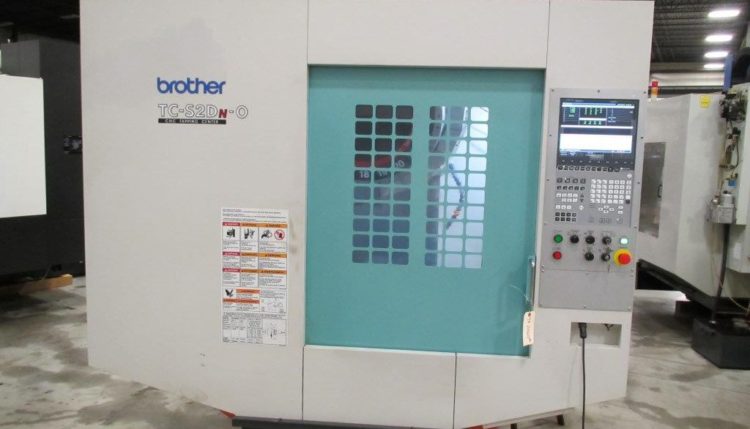

2011 Brother TC-S2DN-O

2011 Brother TC-S2DN-O

Control: Brother CNC-B-00

G Code & Conversational Control With RS232C Interface

Yukiwa JNCH-170L 4th Axis Rotary Table

435 PSI Through Spindle Coolant System

High Pressure Spindle Taper Coolant Blast

Chip Conveyor

X Axis: 27.6″

Y Axis: 15.7″

Z Axis: 11.8″

Table Top to Spindle Nose End: 7.1″ -18.9″

Table Surface: 331.5″ 15.7″

Max. Load on Table: 661lbs

Spindle Speed: 10,000RPM

Max. Spindle Speed In Tapping: 6,000RPM

Spindle Taper Hole: #30

Rapid Traverse: 1,969 IPM

Cutting Feedrate (X,Y:1): .04-394 IPM

Cutting feedrate (Z:1): .04-787 IPM

Max. Tool Length: 9.8″

Max. Tool Weight: 6.6lbs

Specs to be verified by purchaser

Contact us for more information at

Dan 815-236-1069 dan@wwechicago.com
