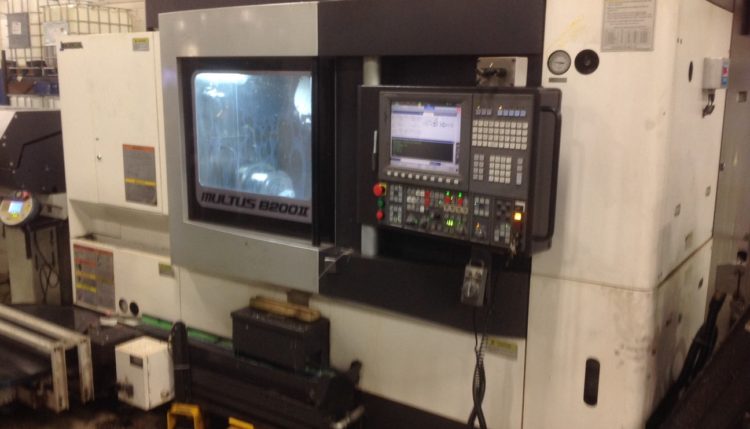

2012 Okuma Multus B200II

2012 Okuma Multus B200II

Control: THINC-OSP-P300S With 14″ Screen

FMB Model Turbo 8-80 12′ Magazine Bar Feed

Special Orientation Device To Run Rectangle Stock

Chip Conveyor

Cool Jet High Pressure

Coolant Collector

Max. Swing: 24.8″

Max. Turning Diameter: 17.72″

Max. Distance Between Spindles: 37″

X Axis┬áTravel: 22.83″

Z Axis Travel: 37.2″

Y Axis Travel: +3.15″

W Axis travel (right spindle travel): 39.37″

C Axis Minimum Increment: 0.001degree

B Axis Travel (angle milling)-30 deg. to +195 deg.

Rapid Traverse Rate (X&Z Axis) : 1575 IPM

Rapid Traverse Rate Y Axis: 1024 IPM

Rapid Traverse Rate W Axis: 787 IPM

Spindle Nose (main & sub spindle):A2-6

Spindle Bore (either spindle) : 2.44″

Spindle Speeds (left spindle) : 38-5,000 RPM

Spindle Speeds (right spindle): 38-5,000 RPM

Spindle Motor (main/ sub spindle): 20 HP/ 20HP

Tool Changer Capacity: 60 Stations

Milling Tooling Speeds: 50-6,000/RPM

Milling Motor: 10HP

FX835 Air Collet Chuck With F46 4-Split Master Collet

Spider Ejection System With 2″ Stroke

Hydraulic Cylinder And Draw Tube

Specs to be verified by purchaser

Contact us for more information at

Dan 815-236-1069 dan@wwechicago.com
