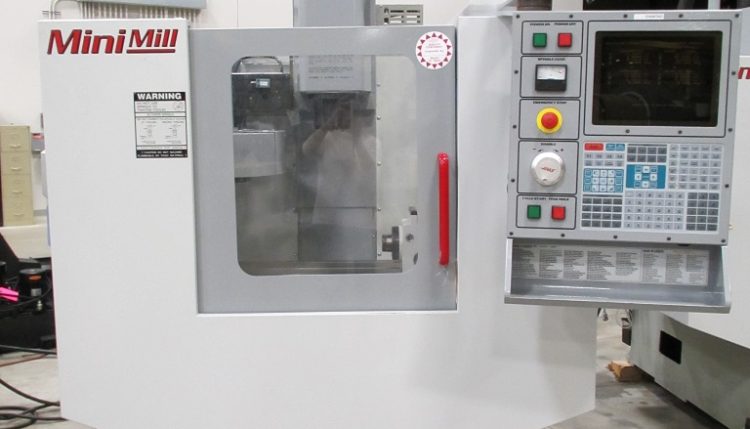

2000 Haas Mini Mill

2000 Haas Mini Mill

Control: Haas Control with Floppy Disk Drive

4-Axis Drive with HA-5C Collet Rotary Head

Coolant Pump

Travels:

X Axis: 16″

Y Axis: 12″

Z Axis: 10″

Table:

Length: 36″

Work Surface: 28.75″

Width: 12″

Max. Weight on Table: 500LBS

T-Slots:

T-Slot Width: .625″

Number of Slots: 3

Center Distance: 4.92″

Spindle:

Taper: #40 Taper

Speed: 0-6,000 RPM

Spindle Motor Max. : 7.5 HP

Spindle Nose to Table Top: 4-14″

Feedrates:

Rapids: 650IPM

Cutting: 500IPM

Tool Changer:

Capacity: 10

Type: CT-40

Tool Diameter: 3.5″

Tool Weight: 12LBS

Specs to be verified by purchaser

Contact us for more information at

Dan 815-236-1069 dan@wwechicago.co
