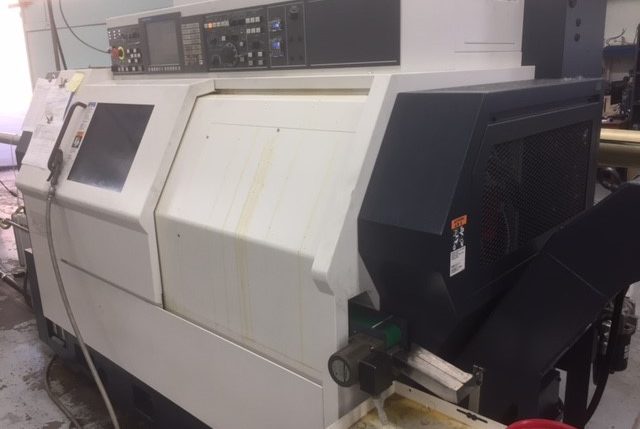

2015 Miyano BNJ 51SY2

2015 Miyano BNJ 51SY2

Control: Fanuc 18i-TB

Chuck Size: 6″

Turning Diameter: 6″

Turning Length: 3.93″

Bar Capacity: 2″

Main Spindle: 50-5000 RPM/ 15.00 HP

Sub-Spindle: 67-7000RPM/ 7.50 HP

Main Turret

Max Tools: Turning 12 / Rotary 12

Tool Shank Size

Square: 0.750

Round: 1.000

Rotary: 0.750

Rotary Tool Spindle : 6,000RPM

Power: 3.30 HP

Back Turret

Max Tools: Turning 6 /Rotary 6

Tool Shank Size

Square: 0.750″

Round: 1.000″

Rotary: 0.750″

Rotary Tool Spindle: 6000RPM /3.30 HP

Secondary Mill/Drill Function

On Center: Standard

C Axis: Standard

Off Center: Standard

Y Axis: Standard

Travels

C1: 360.000 degree

X1: 6.500″

X2: 2.755″

Y1: 3.140″

Z1: 9.685″

Z2: 20.669″

Specs to be verified by purchaser

Contact us for more information at

Dan 815-236-1069 dan@wwechicago.com
