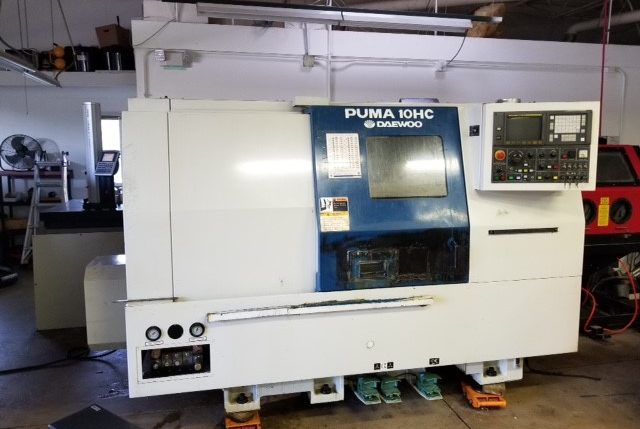

1996 Daewoo Puma 10HC

1996 Daewoo Puma 10HC

Control : Fanuc OT

10″ 3-Jaw Chuck

10″ Collet  Chuck

Swing Over Bed: 19.7″

Max. Cutting Diameter: 14.6″

Max. Machining Length: 20.7″

Max. Bar Capacity: 2.9″

X-Axis Travel: 8.3″

Z-Axis Travel: 21.7″

Spindle Nose / Spindle Bore: A2-8″ / 3.38″

Spindle Speed: 35-3,500 RPM

Spindle Motor 30 minutes/ cont. : 30/ 25 HP

Turret Type: 10 Position Turret

Rapid Traverse Rate X, Z : 470 / 630 IPM

Parts Catcher Size : 2.9″ x 4.3″

Specs to be verified by purchaser

Contact us for more information at

Dan 815-236-1069 dan@wwechicago.com
