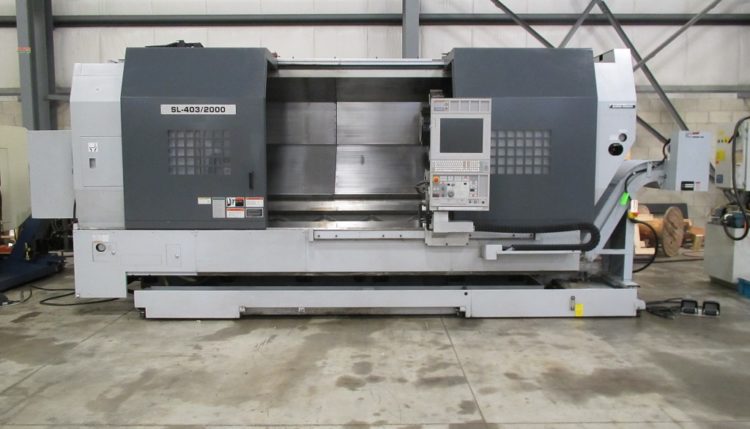

2015 Mori Seiki SL-403CMC/2000

2015 Mori Seiki SL-403CMC/2000

Control: Fanuc F32iB(MAPPS IV)

Big Bore

Live Tooling

Programmable Tailstock

Chip Conveyor

Chip Blaster JV-40 High Pressure Coolant System

18″ Kitagawa BB218 Large Thru-Hole Power Chuck

LNS Autoblock K4 1-ZSW Automatic Steady Rest

Swing Over Bed: 36.8″

Swing Over Cross Slide: 29.1″

Distance Between Centers: 91.5″

Max. Turning Diameter: 25.5″

Standard Turning Diameter: 14.7″

Max. Turning Length: 77.6″

X Axis: 13.6″

Z Axis: 82.7″

Max. Spindle Speed: 1,500RPM

Number of Speed Ranges: 2

Spindle Nose: JIS A2-15

Through Spindle Hole Diameter: 7.3″

Max. Spindle Indexing Angle: 0.001″

Number of Tool Stations: 12

Shank Height For Square Tool: 1-1/4″

Shank Diameter For Boring Bar: 2-1/2″

Turret Indexing Time: .04 Seconds

Maximum Rotary Tool Spindle Speeds: 3,000RPM

Rapid Traverse Rate (X-Axis): 787.4IPM

Rapid Traverse Rate (Y-Axis): 944.9IPM

Rapid Traverse Rate (C-Axis): 56MIN-1

Jog Feed Rate: 0-197IMP

Travel: 78.7″

Spindle Diameter: 5.9″

Taper Hole of Tailstock Spindle: MT5

Tailstock Spindle Travel: 5.9″

Specs to be verified by purchaser

Contact us for more information at

Dan 815-236-1069 dan@wwechicago.com
