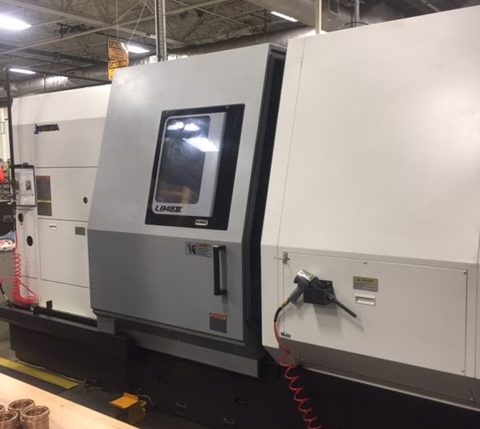

2015 Okuma LB 45IIIC1000

2015 Okuma LB 45IIIC1000

Side Hinge High Type Conveyor

24″ Chuck With a 4″ Thru Hole

Big Bore A2-11 W/O Chuck PKG

Axis: 2

Swing Over Bed: 35.43″

Swing Over Saddle: 21.65″

Max. Turning Diameter: 25.98″ Max

Z-Travel : 41.73″

Work Length: 39.34″

Spindle Bore: 4.33

RPM: 2,400

HP: 50/40

12 Position Turret

X-Axis Rapids: 591 IPM

Z-Axis Rapids: 787 IPM

Cutting Feed Rate: .0001-10IPM

MT5 Taper on Tailstock 6.69″ Quill Travel

Specs to be verified by purchaser

Contact us for more information at:

Dan 815-236-1069 dan@wwechicago.com
