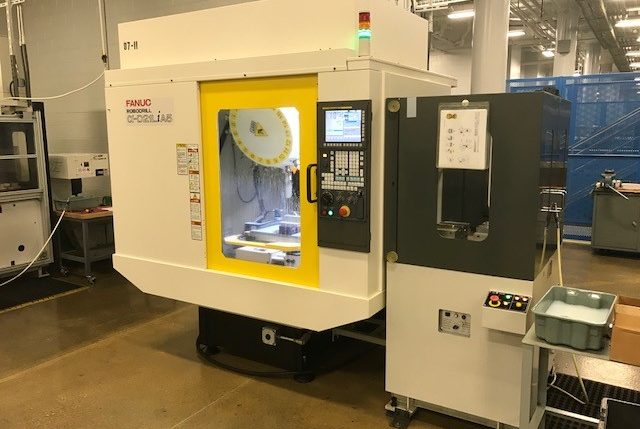

2014 Fanuc Robodrill a-D21iLA5

2014 Fanuc Robodrill a-D21iLA5

Control: 31i-B5

27.55″ x 15. 74″ x 12.99″

Table Size: 33.46″ x16.4″

Load Capacity: 660lbs

Automatic Pallet Changer

500 PSI High Pressure Coolant

Renishaw TS27R Tool Setting Probe

Mist Collector

Chip Conveyor

Bed Flush

X-Axis: 27.55″

Y-Axis: 15.74″

Z-Axis: 12.99″

Spindle Speed: 10,000 or 24,000 RPM

Spindle Taper: BT-30

Spindle Nose To Table Top: 4.53″ – 17.53″

Motor: 20HP

Rapid Traverse: 2,125 IPM

Programmable Cutting Feed Rate: 1,181 IPM (X,Y,Z)

Number Of Tools: 21

Tool Change Time: 1.6 Sec. ( Chip to Chip)

Maximum Tool Length: 9.84″

Maximum Tool Diameter: 3.14″

Maximum Tool Weight: 6.6LBS

Specs to be verified by purchaser
