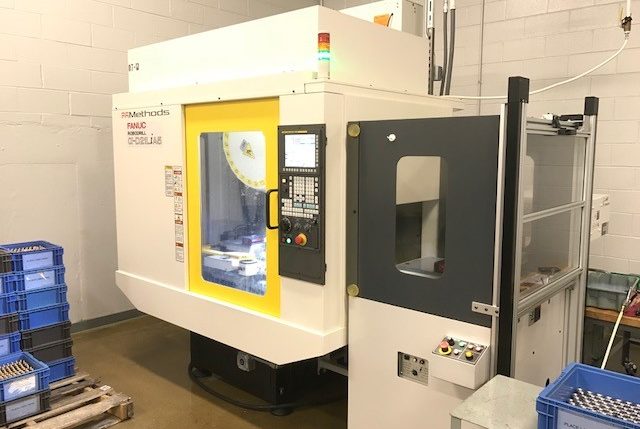

2015 Fanuc Robodrill a-D21iLA5

2015 Fanuc Robodrill a-D21iLA5

Automatic Pallet Changer

500 PSI High Pressure Coolant

Renishaw TS27R Tool Setting Probe

Mist Collector

Chip Conveyor

Bed Flush

27.55″ x 15.74″ x 12. 99″

Control: 31i-B5

Table Size: 33.46″ x16.4″

Load Capacity: 660lbs

X-Axis: 27.55″

Y-Axis: 15.74″

Z-Axis: 12.99″

Spindle Speed: 10,000 RPM

Spindle Taper: BT-30

Spindle Nose To Table Top: 4.53″- 17.53″

Motor: 20 HP

Rapid Traverse: 2,125 IPM

Programmable Cutting Feed Rate: 1,181 IPM (X,Y,Z)

Number Of Tools: 21

Tool Changing Time: 1.6 Sec. (chip to chip)

Maximum Tool Length: 9.84″

Maximum Tool Diameter: 3.14″

Maximum Tool Weight: 6.6lbs



Specs to be verified by purchaser

Contact us for more information at

Dan 815-236-1069 dan@wwechicago.com
