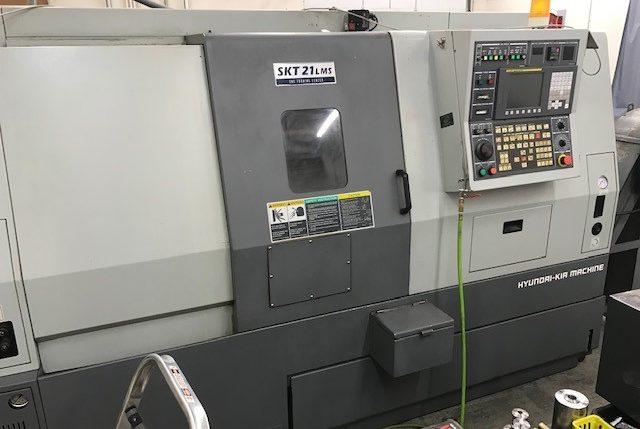

2007 Hyundai Kia SKT21LMS

2007 Hyundai Kia SKT21LMS

Control: Fanuc Oi-TB

Live Tooling

Holders

Tool Setter

Parts Conveyor

Chip Conveyor

Swing Over Bed: 21.6″

Max. Machining Diameter: 10″

Main Spindle Chuck Size: 8″

Sub Spindle Chuck Size: 4″

Swing Over Cross Slide: 13.8″

Max. Turning Length: 20.8″

Bar Capacity: 2″

Main Spindle Speed: 4,000 RPM

Sub Spindle Speed: 5,000RPM

Main Spindle Out Diameter: 3.9″

Sub Spindle Out Diameter: 2.4″

Main Spindle Nose ASA : A2-6

Sub Spindle Nose FLAT: 115mm

Number of Tools: 12

Turret Rotating Speed: 4,000RPM

Rapid Travel X and Z Axis: 1,417ipm

Rapid Travel B Axis: 1,181ipm

Rapid Travel C-Axis: 100 min-1

X Axis: 8.7″

Z Axis: 21.6″

B Axis: 29.5″

C Axis: 360 deg.

Main Spindle Motor: 20/15 HP

Sub Spindle Motor: 5/3 HP

Specs to be verified by purchaser

Contact us for more information at:

Dan 815-236-1069 dan@wwechicago.com
