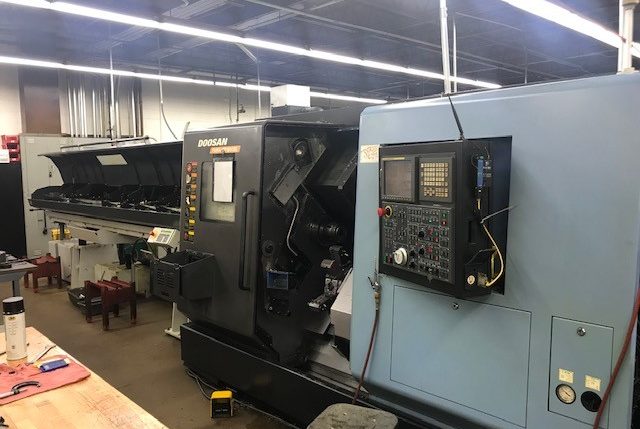

2007 Doosan Puma TT1800SY

2007 Doosan Puma TT1800SY

Control: Fanuc 18iTB

FMB Turbo 5-55 Magazine Bar feed

LNS Chip Conveyor

Royal QG 65 Collet Chucks

Distance Between Spindle Noses: 29.5″

X1 Axis Travel: 6.5″

X2 Axis Travel: 7.48″

Z1 Axis Travel:27.5″

Z2 Axis Travel: 28.34″

B Axis Travel (Right Spindle): 30.31″

C Axis Contouring (Both Spindles): 0.001 deg.

Y Axis Travel: 3.93″

Spindle Nose: A2-6

Spindle Speeds: 50-5,000RPM

Spindle Bore: 3.0″

Max. Bar Stock Diameter: 2.6″

Spindle Motor: 30MP

Turret Capacity (Each Turret): 12 Positions

Live Tooling Motor: 7.5 HP

Live Tooling Speeds: 5000RPM

Specs to be verified by purchaser

Contact us for more information at

Dan 815-236-1069 dan@wwechicago.com
