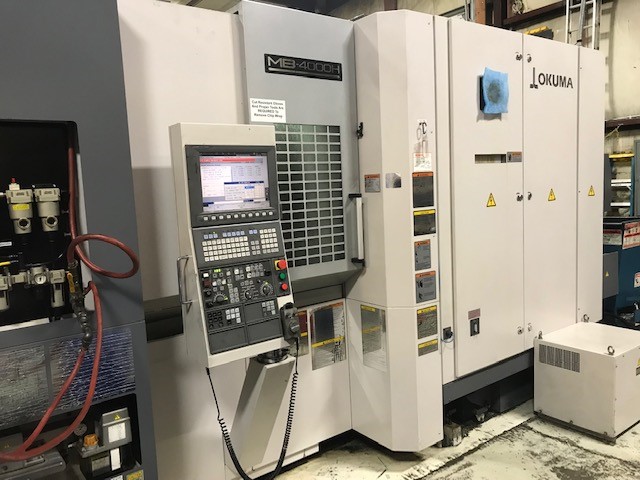

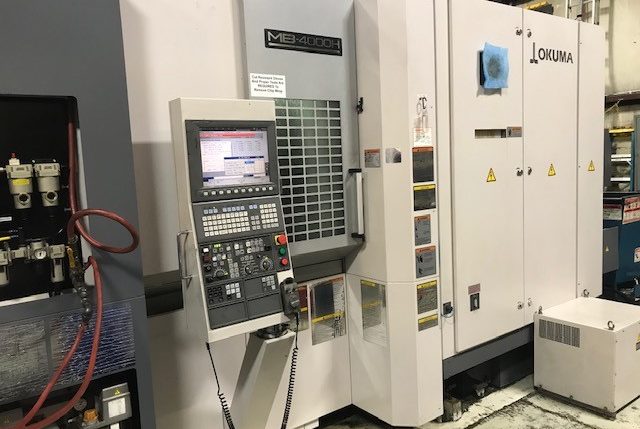

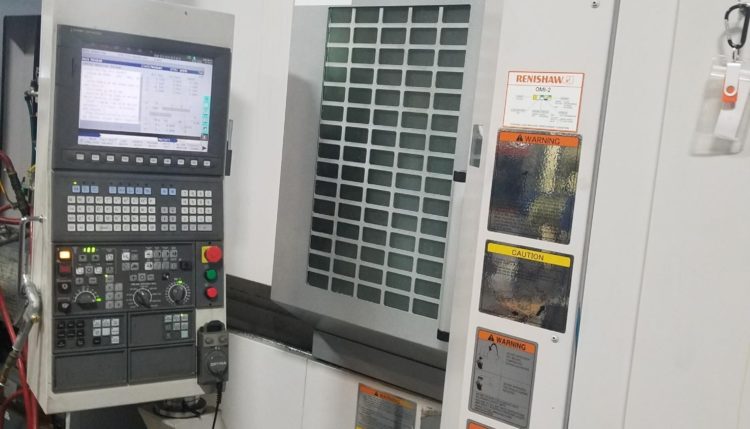

2012 Okuma MB-4000H


Full Fourth Axis

Shower Coolant

Coolant Thru Spindle

MP Systems 1000PSI Coolant System

High Pressure

Auto Gauging Renishaw OMP400HA-OM12

Spindle Head Cooling

Tool Breakage Detection

ATC: 110 Tools

CAT: 40 Taper

Chip Conveyor

(2) Jergens Towers

Max. Machining Volume: 22.05″x 22.05″x 24.61″

Rotary Pallet Size: 15.75″ x 15.75″

High Speed Cartridge Spindle

Spindle Speed: 15,000 rpm

Rapid Traverse: 2.362 ipm

High Speed ATC (T:T=1 Second: C:C=2.3 Seconds)

High Speed APC 7 Seconds

Active & Passive Thermal Compensation (TAS-C, TAS-S )

Extremely Small Footprint

Optimum Operator Ergonomics ( quiet operation, wide door, front /back service, L/UL reach & height, easy ATC access )

Upgradeable Control Platform for Future Revisions and Enhancements

Windows XP Operating System with Significant Standard Connectivity & Memory

Specs to be verified by purchaser

Contact us for more information at

Dan 815-236-1069 dan@wwechicago.com
