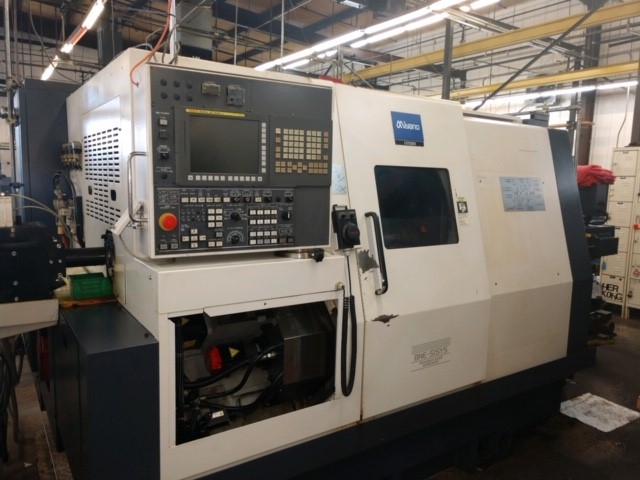

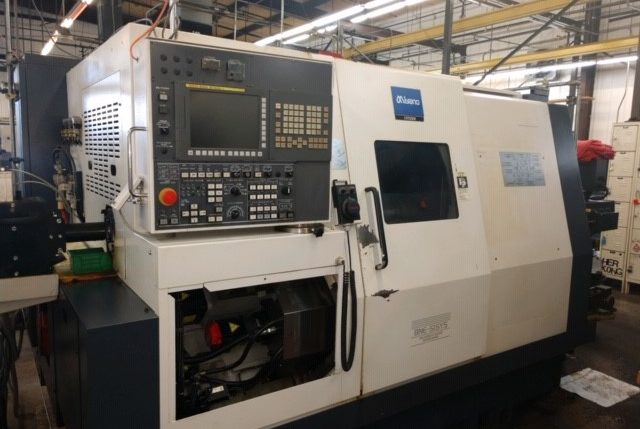

2012 Miyano BNE-51SYS

FMB Turbo 5-55 Barfeed

Control: Fanuc 31i-A

Parts Catcher

Round Collet Capacity: 2″

Main Chuck Size: 6″

Sub Chuck Size: 4″

Max. Turning Length: 3.54″

Max. Turning Diameter (main) : 6″

Max. Turning Diameter (sub) : 3″

Max. Turning Length: 3.54″

Swing Diameter ( upper turret): 20″

Swing Diameter (lower turret) : 17.9″

Collet Capacity: 2″

Spindle Speed Range: 67-5,000rpm

Variable Speed Steps: Direct Drive

Spindle Drive Motor ( 30min.): 10 hp

Motor Type: AC

Spindle Nose: A2-6

Collet Capacity: 1-5/8″

Spindle Drive Motor (Max. rating): 7.5 hp

Spindle Nose: Flat

Slide Movement ( B Axis) : NC Control

Slide Stroke ( B-Axis) : 17.7″

Rapid Traverse Rate: 472 IPM

Upper Turret

Tool Stations: 12

Slant Bed: 45″

Max. Slide Stroke (X Axis): 6.8″

Max. Slide Stroke ( Z Axis): 15″

Max. Slide Stroke ( Y Axis) : +/-1.57″

Rapid Traverse Rate (X&Z-Axis): 472 IPM

Rapid Traverse Rate(Y-Axis) : 393 IPM

Turret Indexing Time: .25 sec/POS

Turret Indexing Type: BI-Directional

Lower Turret

Tool Stations: 12

Slant Bed: 45″

Max. Slide Stroke (X-Axis): 5.7″

Max. Slide Stroke ( Z-Axis) : 6.8″

Rapid Traverse Rate ( X-Axis) : 393 IPM

Rapid Traverse Rate ( Z-Axis) : 472 IPM

Turret Indexing Time: .25 sec/POS

Turret Indexing Type: BI-Directional

Revolving Tool Attachments (upper & lower turrets)

Number of Positions: 12

Drive Motor: 3.3hp

Speed Range: 0-4,000 rpm

Revolving tool Axis: X7Z

C-Axis Spindle Control (main & sub)

Spindle Positioning: 360 degrees

Minimum Command Increment: 0.001 degree

Rapid Feed Rate: 33 rpm

Specs to be verified by purchaser
