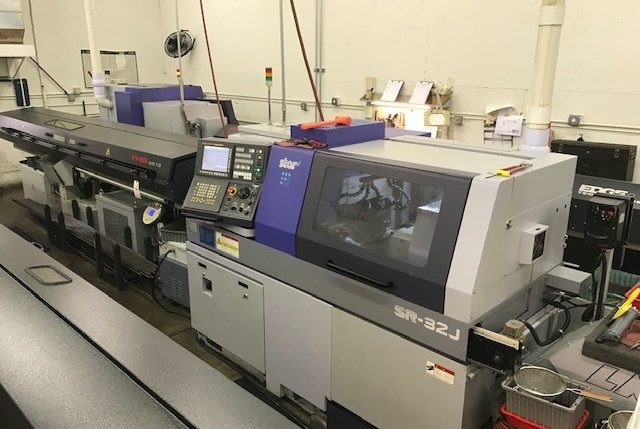

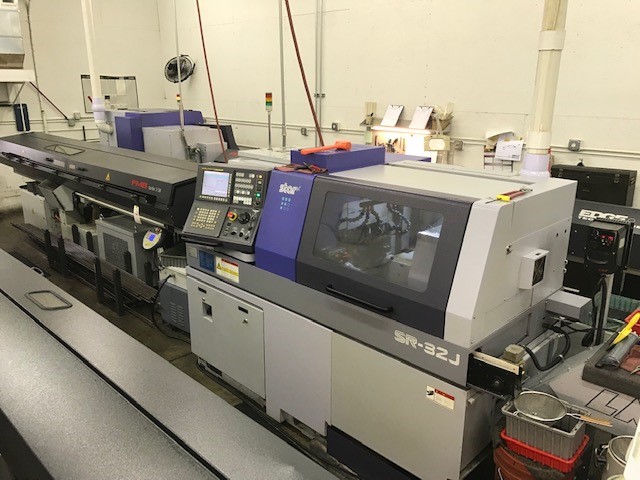

2015 Star SR32J

Control: Fanuc 32i-B

FMB Turbo 3-38 Magazine Barfeed

Chip Conveyor

Parts Conveyor

4 Line High Pressure

Max. Machining Diameter: 1-1/4″

Max. Chucking Diameter: 1-1/4″

Max. Length for Front Ejection: 4-59/64″

Max. Parts Projection Length: 1-49/64″

Number of Tools: 4 Tools OP

Back Spindle

Number of Tools: 4 OP

Max. Drilling Stationary Tool: 33/64″

Power Driven Tool: 15/64″

Stationary Tool: M10XP1.5

Power Driven Tool: M5xPO.8

Sub Spindle Speed: Max. 7,000min -1

Sub Spindle Motor: 2.2kw (Continuous) / 3.7 kw (15min./ 60%ED)

Main Spindle Speed: Max. 7,000min -1

Main Spindle Motor: 5.5kw ( continuous)/ 7.5kw(15min./60%ED)

Rapid Feed Rate: 24m/min. (X, Y, Z, ZB,XB)

Power Driven Att. Spindle Speed: Max. 5,000min. -1

Specs to be verified by purchaser

Contact us for more information at:

Dan 815-236-1069 dan@wwechicago.com
