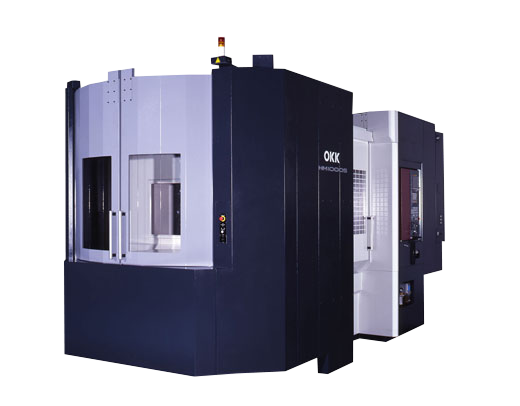

2019 OKK HM-1000S

Control: Fanuc 31i-B5

Pallet Table Dimensions: 39.37″ x 39.37″

Max. Load On Pallet: 5,500lbs

Spindle Taper: 7/24 taper # 50

Minimum Spindle Speeds: 35 rpm

Max. Spindle Speeds: 12,000 rpm

Rapid Traverse Rate X,Y,Z axis: 1,889 ipm

Axis Motor

X Axis: 7.4 hp

Y Axis: 12.1hp

Z Axis: 8.0hp

Max. X Axis Thrust : 3,905lbs

Max. Y Axis Thrust: 5,446lbs

Max. Z Axis Thrust: 3,905lbs

X Axis: 55.12″

Y Axis: 43.31″

Z Axis: 39.37″

Spindle Center To Pallet Surface: 1.18″ – 44.49″

Spindle Gauge Line To Pallet Center: 9.84″ – 49.21″

Specs to be verified by purchaser

Contact us for more information at :

Dan 815-236-1069 dan@wwechicago.com
