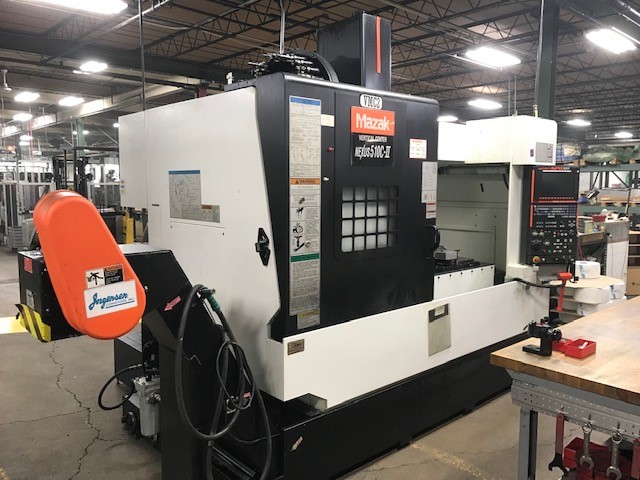

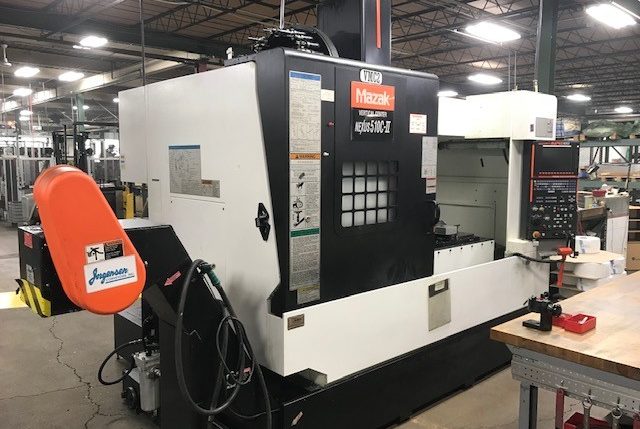

2012 Mazak Nexus 510C II

Chip Conveyor

Coolant Thru

Probe

Table Size: 51.18″ x 21.65″

Table Load Capacity: 2,646 lbs

X Axis Travel: 41.3″

Y Axis Travel: 20″

Z Axis Travel: 20″

Spindle Taper: CAT 40

Spindle Speeds:12,000RPM

Spindle Motor 10/30/Cont. Min: 25/ 20/10HP

Distance From Table Top To Spindle Nose: 5.9″ – 25.98″

Tool Magazine Capacity: 30 Position ATC

Max. Tool Diameter/Length/Weight: 4.92″ /13.8″ /17lbs

Tool Change Time: 1.3 Sec.

Rapid Traverse. Rates: 1,417 IPM

Specs to be verified by purchaser

Contact us for more information at

Dan 815-236-1069 dan@wwechicago.com
