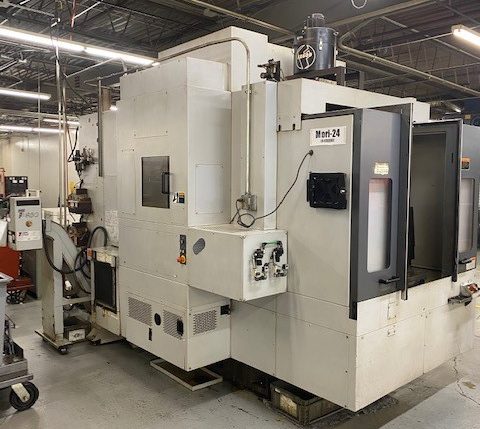

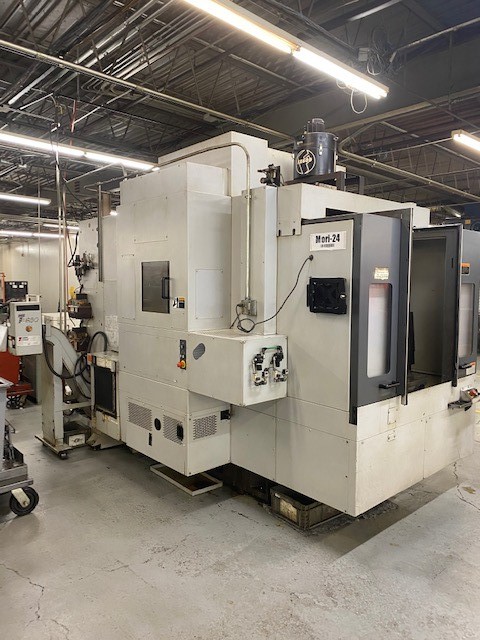

2007 Mori GV503

Chip Conveyor

X Axis: 24.02″

Y Axis: 20.08″+3.15″ + APC Travel

Z Axis: 18.11″

Distance From Table Surface To Spindle Gage Plane: 5.91″-24.02″

Distance From Floor Surface To Table Surface: 39.37″

Table Work Surface: 29.53″ x 21.65″

Table Loading Capacity: 660lbs

Table Surface Configuration: 18mm T-Slot 5 pcs. Pitch 100mm

Spindle Speed: 12,000 RPM

Number Of Spindle Speed Ranges: 1

Type Of Spindle Taper Hole: #40

Spindle Bearing Inner Diameter: 2.75″

Rapid Traverse Rate: 1653.54 ipm

Type Of Tool Shank: CAT 40

Tool Storage Capacity: 30

Number Of Pallets: 2

Method Of Pallet Change: Front Rotation Type

Specs to be verified by purchaser

Contact us for more information at

Dan 815-236-1069 dan@wwechicago.com
