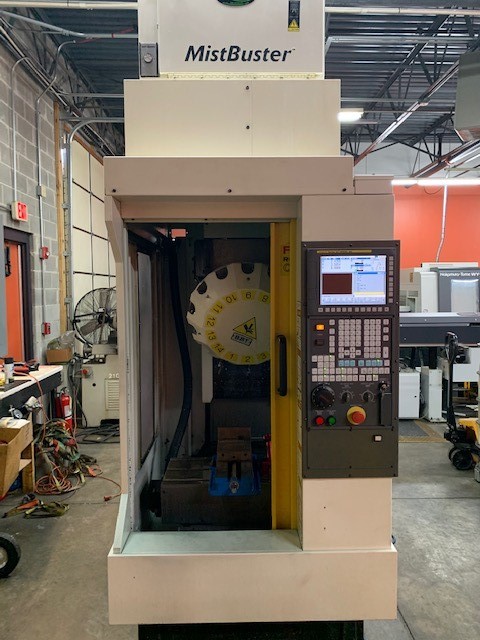

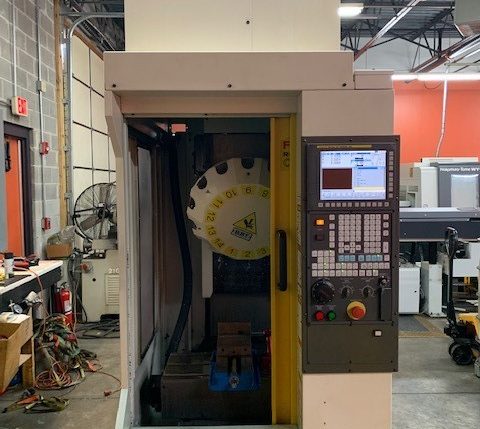

2013 Fanuc Robo Drill D14SiA5

Table Size: 25.6″ x 15.7″

Max. Table Load: 660lbs

X Axis Travel: 11.8″

Y Axis Travel: 11.8″

Z Axis Travel: 13″

Spindle Nose To Table Top: 5.9″ – 18.9″

Spindle Taper: Big Plus BT30

Spindle Speed: 24,000RPM

Spindle Motor: 34.8 / 7.3 HP

Rapid Travers Rates: 2,125 IPM

Cutting Feed Rates: 1,181 IPM

Tool Stations: 14

Specs to be verified by purchaser
