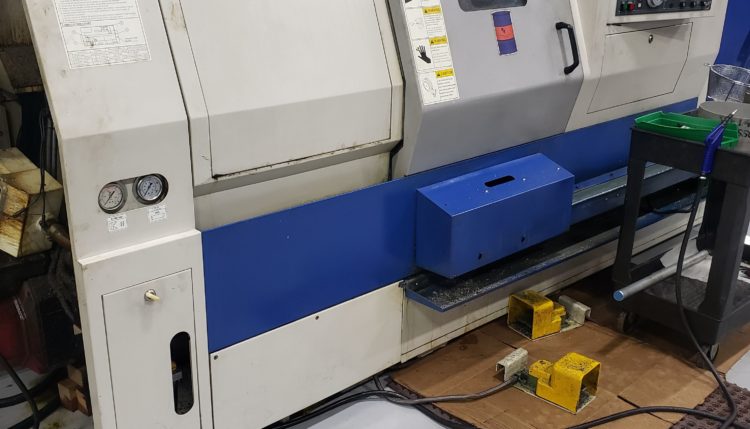

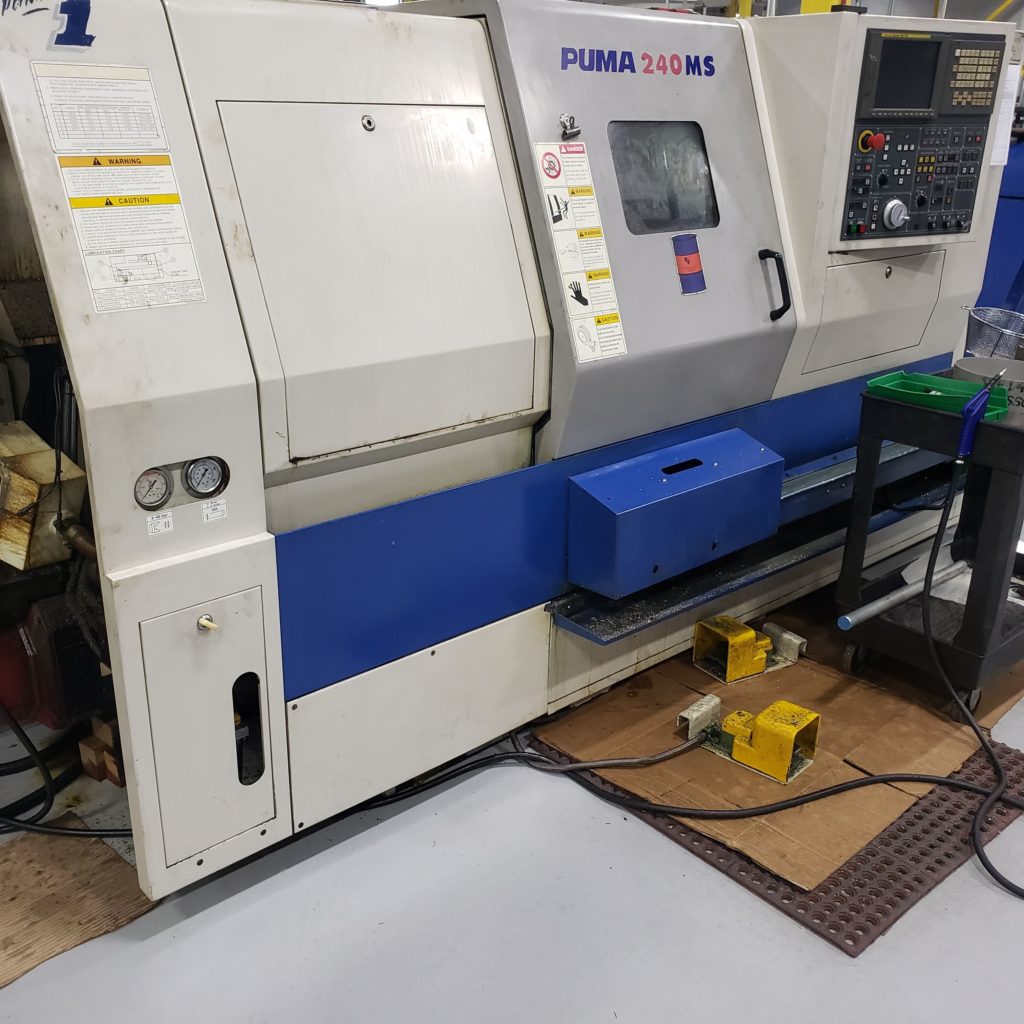

2006 Doosan Puma 240MSB

Fanuc 18i Control

Chip Conveyor

Parts Conveyor

2 ID Holders

2 Double Turning Holders

No Live Tools

Machine Has Live Tool Option

Swing Over Bed: 550mm

Swing Over Saddle: 390mm

Max. Turning Diameter: 300mm

Max. Turning Length: 513mm

Bar Working Diameter: 65mm

X Axis Travel: 205mm

Z Axis Travel: 580mm

B Axis Travel: 580mm

Main Spindle Speed: 4,500 rpm

Spindle Nose: A2#6

Spindle Bearing Diameter: 110mm

Spindle Through Hole Diameter: 76mm

Number of Tool Stations: 12

OD Tool Size: 25mm

Boring Bar Diameter: 40mm

Indexing Time: 0.15 sec

Rotary Tool Spindle Speed: 5,000rpm

Sub Spindle Speed: 6,000rpm

Sub Spindle Bearing Diameter: 75mm

Sub Spindle Through Hole Diameter: 45mm

Rapid Traverse (X/Z axis) : 24m/30 min

Specs to be verified by purchaser

Contact us for more information at:

Dan 815-236-1069 dan@wwechicago.com
