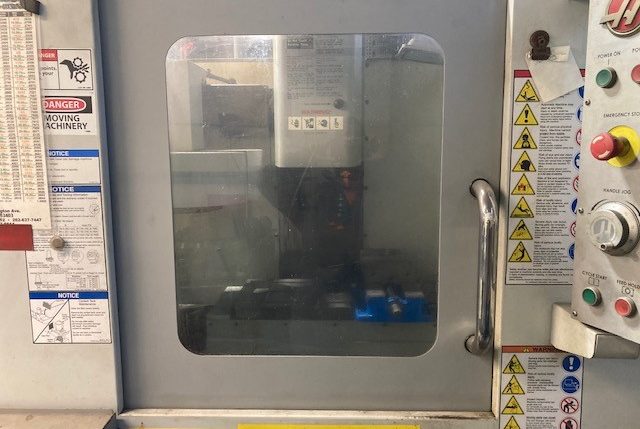

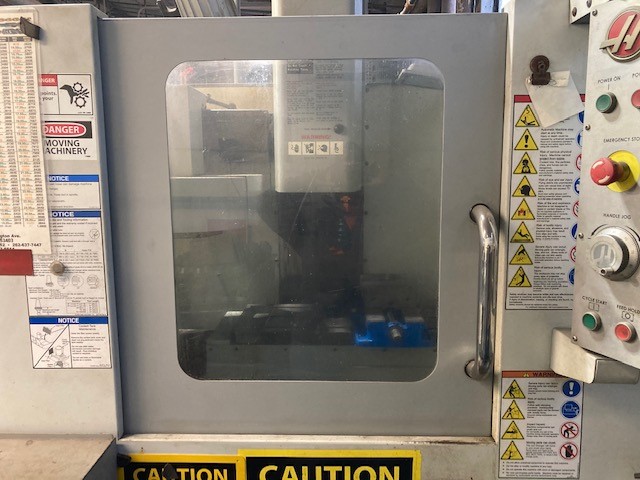

2010 HAAS Mini Mill

Table/ Pallet Size: 40″x 14″

High Pressure Coolant

IPF

Rigid Tap

X Travel: 20″

Y Travel: 16″

Z Travel: 14″

Rapid Traverse: 1200IPM

Cutting Feed Rate: 833IPM

Spindle Taper Type: CAT #40

Spindle Speed: 7,500RPM

Spindle Motor: 7.5HP

Tool Changer Capacity: 24.1

Tool Changer Type: Side Mount

Tool Change Time: 3.5 sec.

Chip to Chip Time: 5 sec.

Specs to be verified by purchaser

Contact us for more information at

Dan 815-236-1069 dan@wwechicago.com
