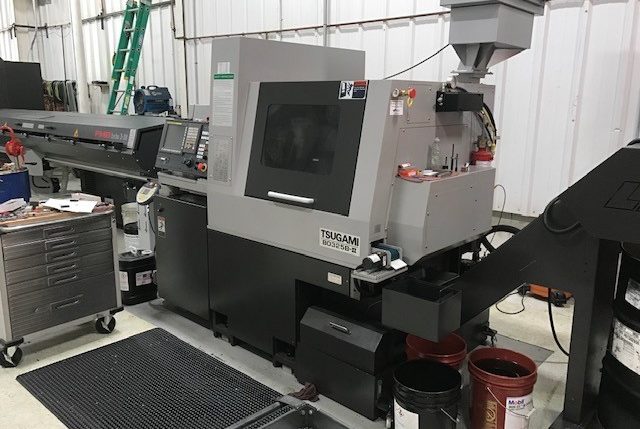

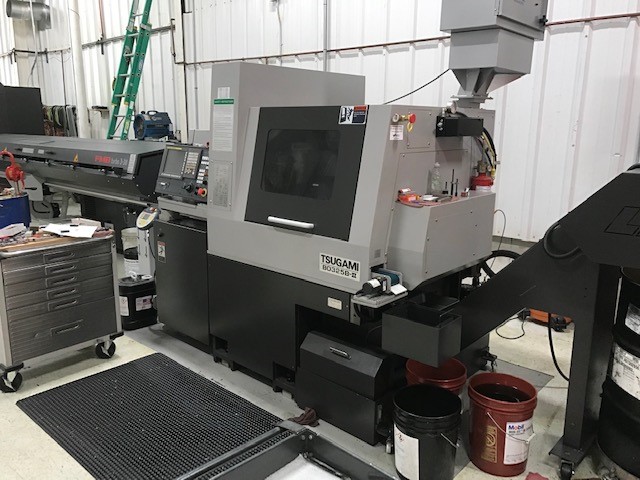

2017 Tsugami BO325BII

FMB Turbo 3-38 Bar Feed

MP High Pressure

Tri- Mist 850

Chip Conveyor

Parts Conveyor

Fire Trace

Extra Tooling

(8) Turning

(4) Cross Live

(8) Front ID ( 2 are deep drilling)

(4) Back ID

Max. Chucking Barstock Diameter: 1.26″

Max. Machining Length: 12.6″ Direct Drive Guide Bush

2.76″ Guide Bushless

Max. Drilling Diameter: .47″

Max. Tapping Diameter: M10

Max. Back Spindle Chucking Barstock Diameter: 1.26″

Max. Back Spindle Drilling Diameter: .39″

Max. Back Spindle Tapping Diameter: M8

Max. Tool Spindle Drilling Diameter: .39″

Max. Tool Spindle Tapping Diameter: M8

Max. Tool Spindle Slotting Cutter Diameter: 1.77″

Main Spindle Speed: 200-8000min -1

Back Spindle Speed: 200-10,000 -1

Tool Spindle Speed: 200-600 -1

Total Tool Number: 27

Tool Size: .63″ x 3.94″

Main Spindle: 3.7/5.5 kW

Back Spindle: 2.2/3.7 kW

Specs to be verified by purchaser

Contact us for more information at

Dan 815-236-1069 dan@wwechicago.com
