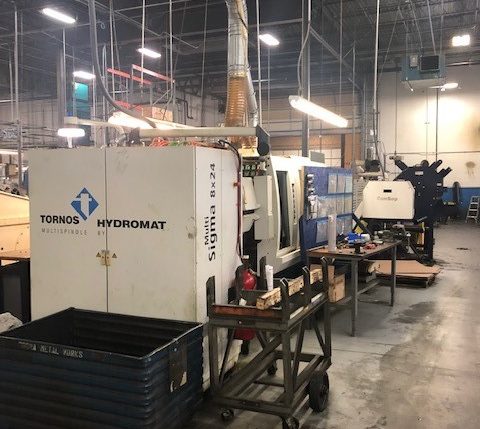

2010 Tornos MultiSIGMA8x24

Control: Fanuc 30i-TB

ROBOBAR MSF-HC-522/8 4M

High Pressure

(8) Motorspindles

(6) Compound Slides POS. 1 to 6

(1) Cut-Off Cross Slide POS. 8

(1) Counter-Operation Slide POS.8

(1) Counter Spindle POS.8

(6) End Working Units POS. 1 to 6

( Requires Option 0006 or 0007)

Motorspindle Power: 11.2kW 17(25)Nm

Speed : 0- 8,000RPM

(6) Compound Slides:

X : 50mm Stroke

Z1: 80mm

Position 1,2,3,4,5,6

1 Cross Slide 65mm Stroke ( pos. 8)

1 Counter-Operation Slide: 65mm Stroke

6 End Working Units: 371mm Stroke

1 Counter Spindle Capacity: 20mm Diameter

Mounted On a Slide

Z= 330mm Stroke

Independent Motor: 0-8,000RPM

Specs to be verified by purchaser

Contact us for more information at

Dan 815-236-1069 dan@wwechicago.com
