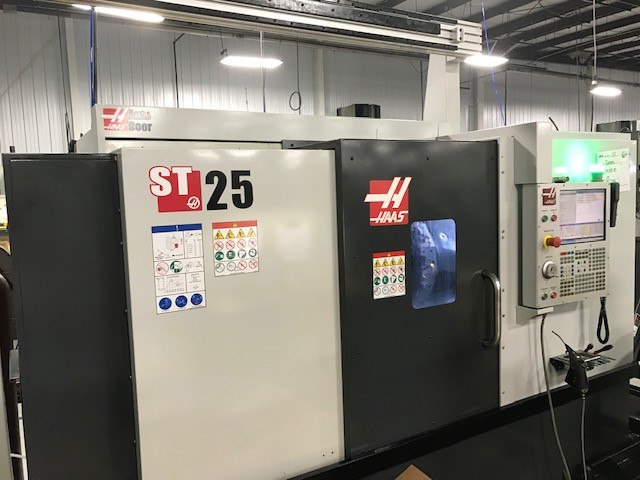

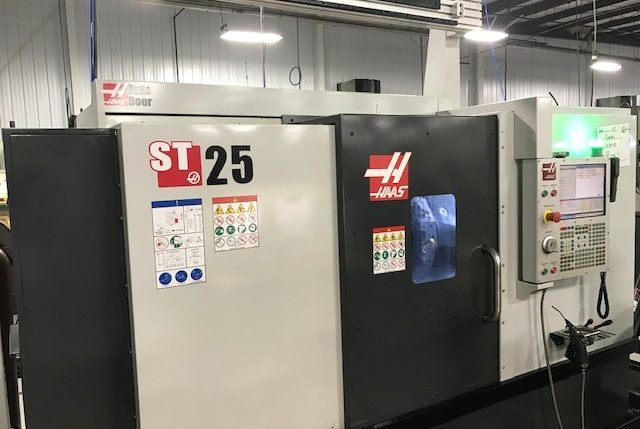

2019 Haas ST25

Gantry Load

Chuck: 10″ Hydraulic Chuck

Chip Conveyor

A2-6 Spindle Nose

Max. Part Swing: 21″

Max. Cutting Diameter: 13″ (with BOT Turret)

Max. Cutting Diameter:11.75″ (with BMT65 Turret)

Max. Cutting Length: Varies 22.5″ with Workholding

Bar Capacity: 3″

X Axis: 8.4″

Z Axis: 22.5″

Rapids on X: 945 ipm

Rapids on Z: 945 ipm

Max. Thrust X: 4100 ibf

Max. Thrust Z: 5100 ibf

Spindle Nose: A2-6

Max. Rating: 30 hp

Max. Speed: 3400 rpm

Spindle Orientation

Spindle Bore: 3.50 “

Number of Tools: 12 Station BOT

Coolant Capacity: 55 Gal.

Spindle Speed: 3400 rpm

Spindle Power: 30hp

Auto Door

Early Power Failure Detection Module

Ethernet Interface

Remote Monitoring

Rigid Tapping

Wifi Connection for Haas Control

Remote Jog Handle with Color LCD

Automatic tool Presetter

Auto Jet Air Blast

Programmable Hydraulic Tailstock MT4

Specs to be verified by purchaser

Contact us for more information at

Dan 815-236-1069 dan@wwechicago.com
