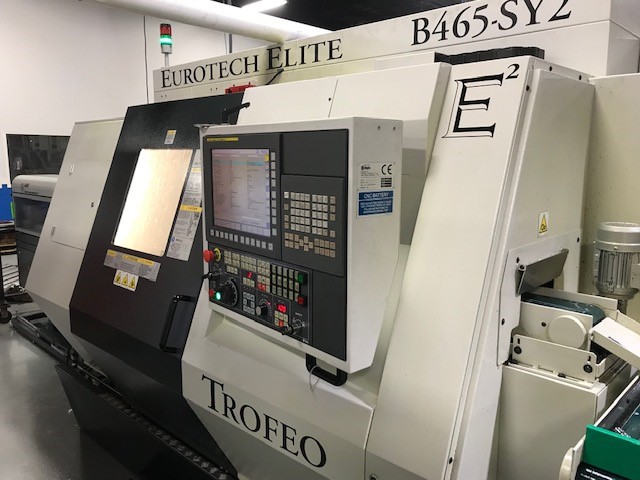

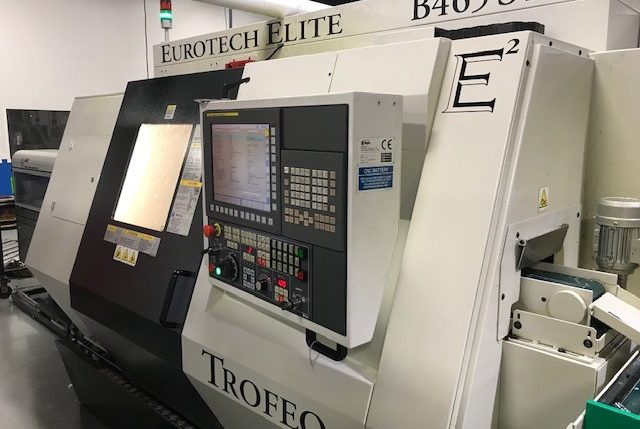

2020 Eurotech Elite B465SY2

LNS Quick Load Servo S3T Bar Feed

Chip Conveyor

Parts Conveyor

4 Live Tools

Bar Capacity: 2.56″ (2.75″)

Chuck Diameter: 8″

Max Length Between Spindle Faces: 37.5

Max Swing Over Diameter: 20.0

Max Speed: 4,000rpm

Spindle Nose: 6″ ASA

Spindle Bore: 3.15″

Chuck Diameter: 8″

Motor Power: 35HP

Max Speed: 5,000rpm

Sub Spindle

Max Speed: 5,000rpm

Spindle Nose: 5″ ASA

Spindle Bore: 2.17″

Chuck Diameter: 6″

Motor Power: 15HP

Number of Stations/ Max Number of Tools: 12/ 192

Turret Indexing ( 1 Position): 0.15sec

Number of Live Tool Stations/Max Number of Live Tools:24/48

Speed STD/ MAX: 4,000/60,000rpm

Motor Power: 5 Geared HP

X1-X2 Axis Stroke -Rapid Traverse: 6.7-708 in-ipm

Z1-Z2 Axis Stroke – Rapid Traverse: 25-21.25-1,811 in-ipm

Y1-Y2 Axes: Strokes -Rapid Traverse: 3.54 [-1.57/+2.32]-354 in-imp

Cooling System : 120 Gallons

Motor Rating of 3 Electropumps: 5hp

Specs to be verified by purchaser

Contact us for more information at

Dan 815-236-1069 dan@wwechicago.com
