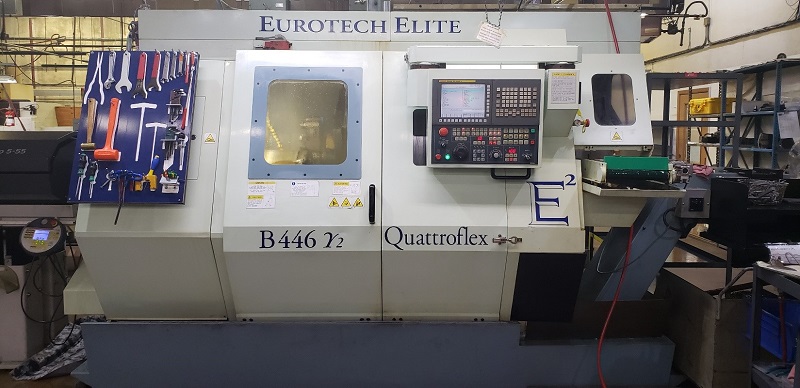

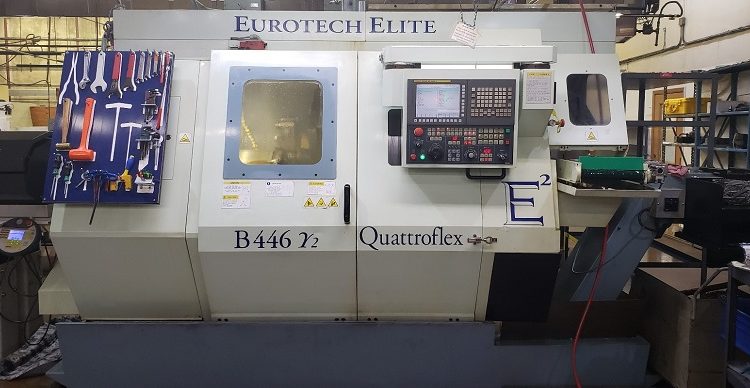

2011 Eurotech B446Y2

We Have Two Identical Machines Available

Control: Fanuc 31iT

FMB Turbo 5-55 Magazine Bar Feed With Remnant Retract Full Length Vari-Speed Parts Conveyor

With 90 degree Exit Conveyor

Dual Turrets

(2) Renishaw Tool Setting Probes

Y-Axis on Upper and Lower Turrets

Sub Spindle

Main & Sub Spindle Collet Chucks

3- High Flow Coolant Pumps

(1) Turret: CoolBalster Dual High Pressure Coolant System with Filter

Accu Chiller Coolant Refrigeration System with Filter

Combination Chip Conveyor/ Coolant Chip Tank

Max. Swing Over Bed: 20″

Max. Turning Diameter: 9.6″

C Axis Index ( Main and Sub Spindle) 0.001 Degree

Chuck Size : 8″

Spindle Motor: 20 HP

Spindle Speed: 5000 RPM

Spindle Bore: 2.44″

Max. Diameter Bar Capacity: 2″

Milling Motor: 5HP

Milling Speed: 4000RPM

Sub Spindle Chuck: 6.5″

Sub Spindle Motor: 15HP

Sub Spindle Bore: 2.17″

Sub Spindle Speed: 5000RPM

Tools: 12 on Upper and 12 on Lower Turret

Y Axis Travel: -1.57″ / + 2.32

Specs to be verified by purchaser

Contact us for more information at

Dan 815-236-1069 dan@wwechicago.com
