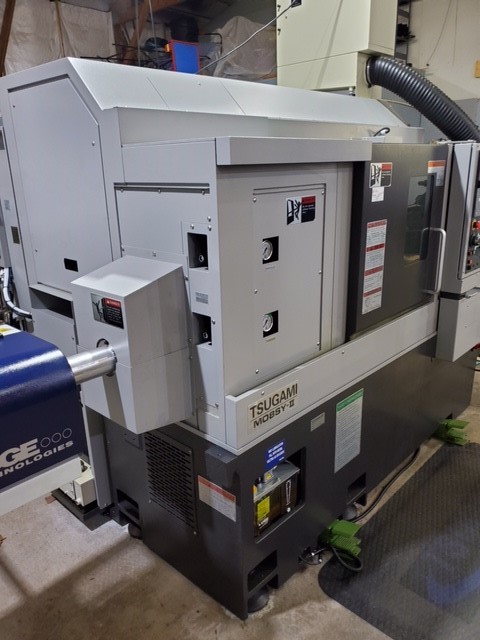

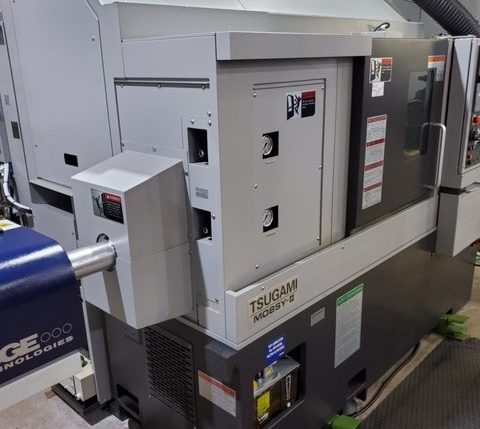

2020 Tsugami MO8SYII

Edge Rebel V-65 Servo Bar Feed

Control: Fanuc Oi-TF

Turbo Chip Conveyor

Mist Buster

High Pressure

(4) Live Tooling: (1) Front Facing, (1) Rear Facing, (2) Axial Side

(3) Double Turning Holders (3295-H520) (1.0″ Square Shank Tooling)

(4) Double Drill Holders (3295-H510) (1.5″ Bore)

(2) Boring Sleeves (3295-H540-0100) (.750″ID)

(2) Boring Sleeves (3295-H540-0200) (ER25 Collet Taper)

(2) Cross Live Heads (3295-Y161) (ER25 Collet Taper)

(1) Front Live Head (3295-Y171) (Front Only, ER25 Collet Taper)

(1) Back Live Head (3295-Y301) (Back Only ER25 Collet Taper)

(1) Cut- Off Holder (3295-H530) (1.0″ / 25.4mm Square Shank)

Work Stopper (3296-Y1261)

Swing : 11″

Number of Axis: 3

X Travel: 8.7″

Z Travel: 14.96″

Chuck Size: 8″

Bar Capacity: 2.5″

Power: 14.8hp

Max. Main Spindle Speed: 4,500rpm

Main Spindle Bore: 2.87″

Max. Back Spindle Speed: 4,500rpm

Back Spindle Bore: 02.32″ / 03.15″

Back Spindle Chuck: 6″

Turning Diameter: 11.02″

Machining Diameter: 011.02″/ 02.56″

Max. Machining Length: 14.96″

Stations: 12

Stroke X/Z : (X) 8.70″ /(Z)15.75″

Specs to be verified by purchaser

Contact us for more information at

Dan 815-236-1069 worldwdmac@aol.com
