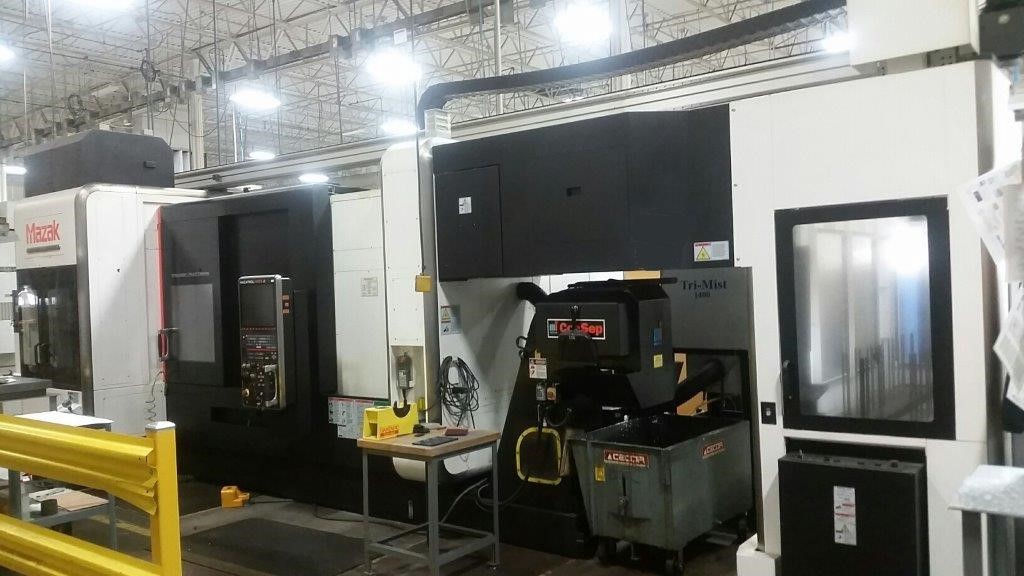

2014 Mazak Integrex I-200ST with Gantry

Chip Conveyor

High Pressure

Mist Collector

Max. Swing: 25.91″

Max. Machining Diameter: 25.910″

Max. Bar Capacity: 2.6″

Max. Machining Length: 59.800″

Chuck Size: 8″

Main Spindle:

Max. Speed: 5000rpm

Second Spindle:

Chuck Size: 8″

Max. Speed: 5000rpm

Milling Spindle:

B-Axis Travel: 240″

Magazine Capacity: 110

Max. Speed: 12,000rpm

Feed Axes:

X Axis: 24.21″

X2 Axis: 9.06″

Y Axis: 9.84″

Z Axis: 62.40″

Z2 Axis: 54.65″

W Axis: 41.97″

Arm Vertical Positioning Speed: 60m/mm (2362 IPM)

Max. Weight: 88.2lbs

16 Pallets on the Gantry

Max. Load Per Pallet: 440lb

Total Load: 2645lb

Coolant & Air for Chuck Jaws (1st Spindl

Main Spindle Hydraulic Chuck Package

Second Spindle Hydraulic Chuck Package

2nd Spindle C axis with C1-C2 0.0001 Degree Increments

Coolant Temperature Control System

Chuck Air Blast (First Spindle)

Upper Turret Air Blast

Tail Center Attachment Lower Turret

Specs to be verified by purchaser

Contact us for more information at

Dan 815-236-1069 dan@wwechicago.com
