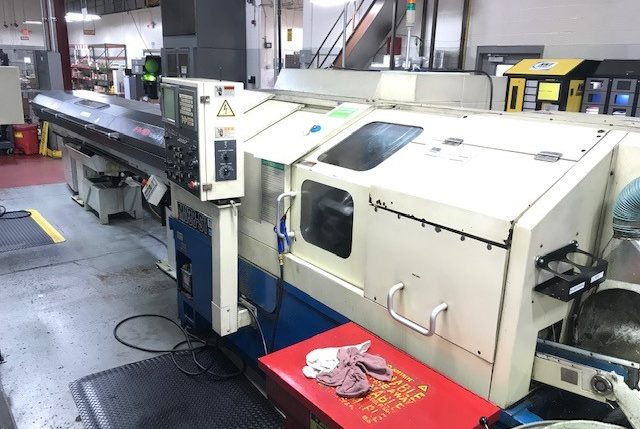

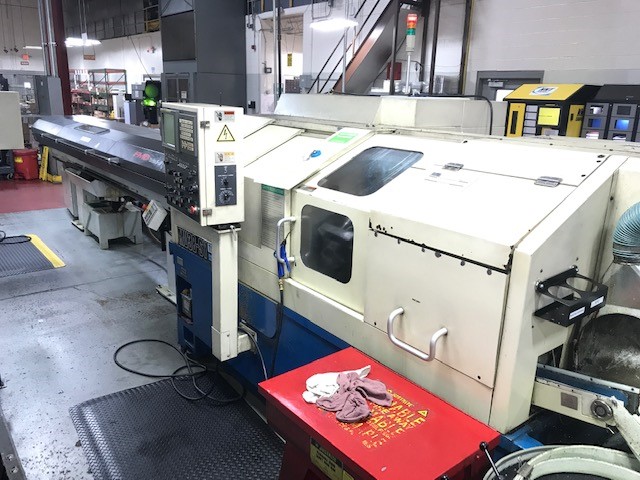

2009 Tsugami MU38SY

FMB Turbo 5-55 Magazine Bar Feed

Control: Fanuc 18iTA

High Pressure Pump

Chip Conveyor

Live Tool Holders:

3233-Y360 1Piece Heavy Duty Cross Drill Holder

3233-Y340 1 Piece Double Cross Drill Holder Front

3233-Y330 1 Piece Double Face Double Off Center Drill Holder

3233-Y570 1 Piece Double Cross Drill Holder Back

Diameter: 1.500″

Max. Machining Length: 9.8″

Max. Drilling Diameter: .63″ in 1045 Steel

Max. Tapping Diameter: 1/2″ in 1045 Steel

Height of Spindle Center: 39.37″

Spindle Speed: 60- 5,000rpm

Motor Output: 14.7 hp

Cutting Torque: 35 nm

Spindle Indexing: C-Axis .01 degrees

Number of Turrets: 2

Number of Mountable Plane: 8 Surfaces per Turret

Indexing Time: T1: 0.2 sec/ pos

T2: 0.3 sec/pos

Idle Time Chip to Chip: T1: 0 to 1.5 sec

T2: 0 to 1.7 sec

Spindle Speed: 60 to 5,000 rpm

Motor Output: 57.5hp

Spindle Indexing: 5 Degrees


X1,X2: 3.15″

Z1: 9.8″

Z2: 5.51″

Y (T2 Turret): 3.15″ ( Y& SY)

Z3: 11.22″

Rapid Traverse:

X1, Z1, Z2, Z3: 787 ipm

X2: 472 ipm

Y: 394 ipm

Specs to be verified by purchaser

Contact us for more information at

Dan 815-236-1069 dan@wwechicago.com
