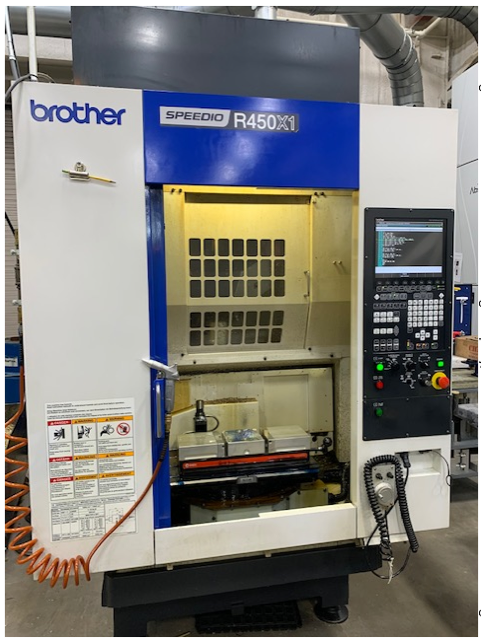

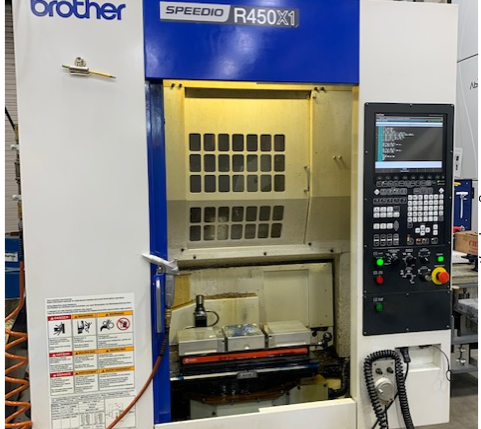

2016 Brother Speedio R450X1

Brother CNC-C00 Control

12.1″ Color LCD

Nikken CNCZ180LSA-BR2 4th Axis

Table Size: 23.6″ x 11.8″

Table Load Capacity: 265lbs

Pallet Change Time: 2.8 Seconds

Spindle Nose To Table Top: 7.9″ -19.9″

X-Axis Travel: 17.7″

Y-Axis Travel: 12.6″

Z-Axis Travel: 12″

Spindle Motor (10min/cont…9.8/ 6.5 hp

Spindle Speed: 16,000RPM

Spindle Taper: BT-30

Max. Tapping Speed: 6,000RPM

Rapid Traverse Rates: 1,969 IPM

Number of Tools: 22

Max. Tool Diameter: 3.1″

Max. Tool Length: 7.9″

Max. Tool Weight: 6.6″

Tool Change Time (T-T/C-C)…0.8/1.6 seconds

12.1″ Color LCD

USB Port

Ethernet Function

Spin -Type High Speed Two Pallet Changer

22 Position Turret

Tool Presetter

Rigid Tapping

Chip Washdown

100 MB Memory

4000 Registerable Programs

150 Liter Coolant Tank (30) BT-30 Tool Holders

Hours:

Power on: 23,598

Cutting: 2,487

Specs to be verified by purchaser

Contact us for more information at

Dan 815-236-1069 dan@wwechicago.com
