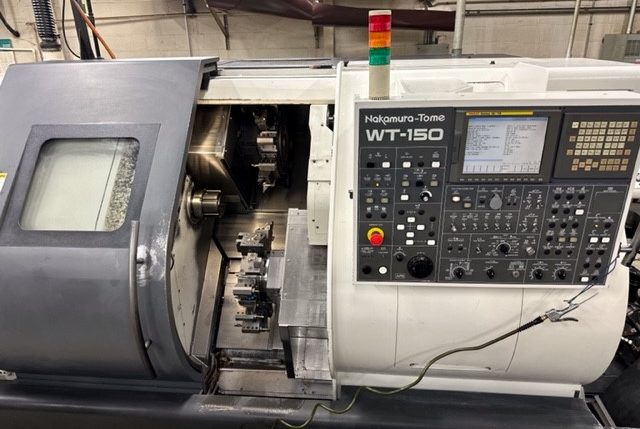

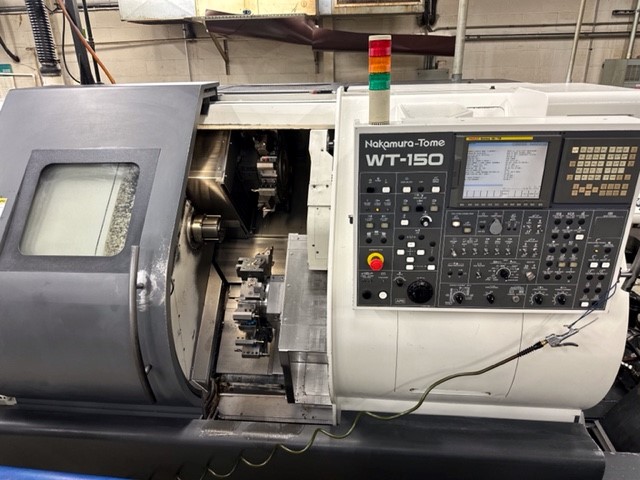

2007 Nakamura WT150MM

Control: Fanuc 18iTB CNC Control

Parts Catcher

High Pressure Coolant System

Chip Conveyor

LNS Quick Load Scerbo S3

Mist Collector

(4) Straight Live Milling Tool Holders

Chuck Size: (2) 6″ 3-Jaw Chucks

Distance Between Spindle Centers: 29.528″ MAX

Spindle Noses: A2-5

Spindle Bores: 2.48″

Max Bar Capacity: 2.047″

Spindle Speeds: 5,000 Max RPM

Spindle Index: Full C-Axis (.001 deg) Left and Right

Max. Workpiece Swing Diameter: 7.488″ Max Turning Diameter

Max. Turning Diameter: 7.488″

Max. Turning Length: 19.8″

Number of Turrets: 2

Turret Capacity: (2) 12 Station All Live Capable

Number of Live Stations on Turret: 12 Each

Rotary Tool Speed: 6,000 RPM Max

Slide Travel: X1/ X2: 6.5″ /6.5″

Live Milling Speeds: 6,000 Max RPM

Slide Travel Z1/Z2/ B: 20.27″ / 23.62″

Turret 1 Travels (X/Z): 6.201″ /18.30″Z

Turret 2 Travels (X/Z) : 6.59″ IPM X / 1,574 IMP Z

Spindle Drives : 20HP Left / 15 HP Right

Rotary Tool Drives: 7.5

Specs to be verified by purchaser

Contact us for more information

Dan 815-236-1069 dan@wwechicago.com
