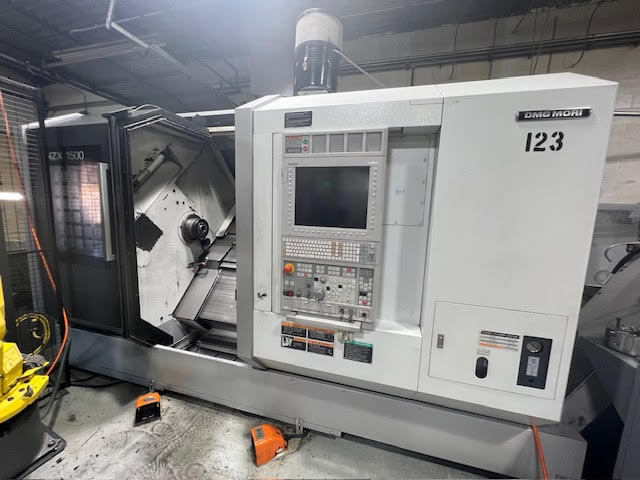

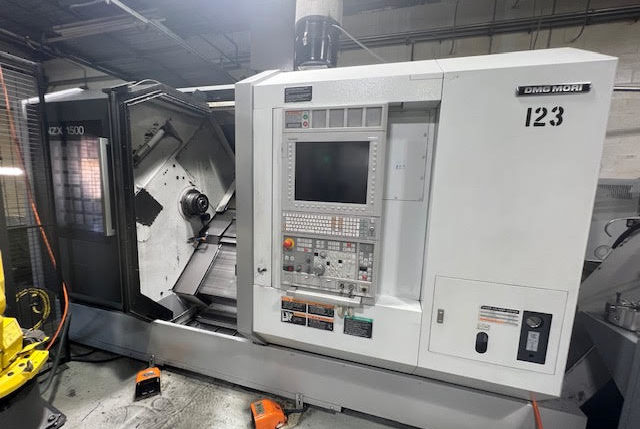

2014 Mori Seiki NZX1500/800S

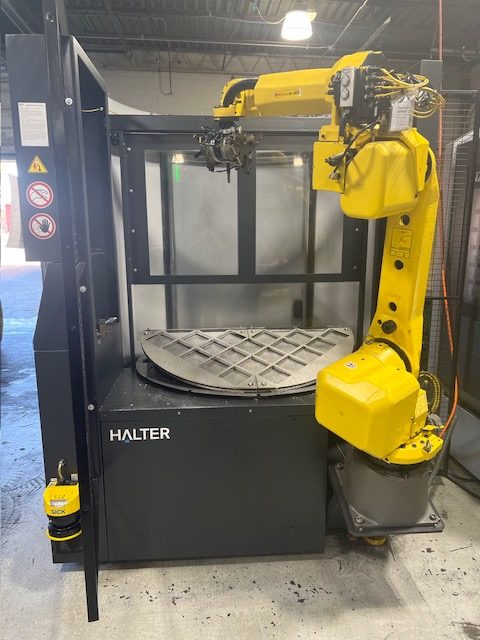

Comes with Halter Robot

Chip Conveyor

(2) Kitagawa BB206 3 Jaw Chucks

(6) 3/4 Shank Turn Tool Blocks

(6) 1 1/4 Diameter Static Tool Blocks

Swing Over Bed: 31.5″

Swing Cross Slide: 31.5″

Max. Diameter Between Large Spindle Nose: 44.4″

Max. Turning Diameter: 12.5″

Standard Turning Diameter: 7.9″

Max. Workpiece Delivery Diameter: 11.8″

Max. Turning Length: 31.8″

Bar Work Capacity: 2.5″

X Travel: 8.3″

Z Travel: 31.9″

B Axis Travel 2 Spindle: 34.3″

Max. Spindle Speed: 5,000

Number of Spindle Speed Ranges: 2

Spindle Nose: JIS A-6

Through Spindle Hole Diameter: 2.9″

Spindle Bearing Inner Diameter: 4.7″

Max. Spindle Indexing Increment: 0.001″

Max. Spindle Speed: 5,000

Number of Spindle Ranges: Stage 2

Turret Type: 16 Station x2

Number of Tool Stations: 32

Turret Indexing Time (1 Station): 0.18 sec

Max. Rotary Tool Spindle Speed: 12,000

Rapid Transverse Rate:

X1,X2: 1,181.1 ipm

Z1,Z2: 1,968.5 ipm

Feed Motor:

X1: 4.0 hp

X2: 1.6 x2

Z1, Z2: 5.3

Specs to be verified by purchaser
