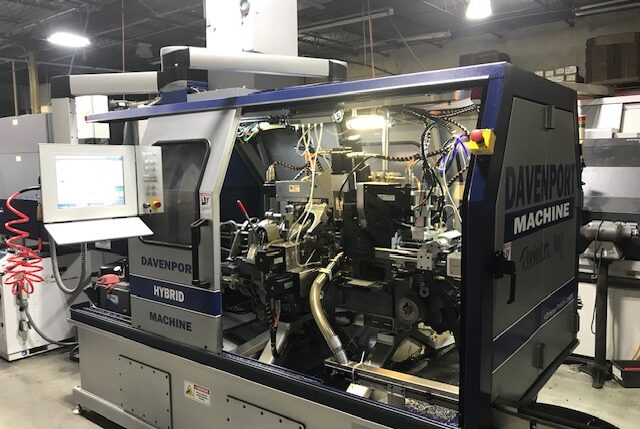

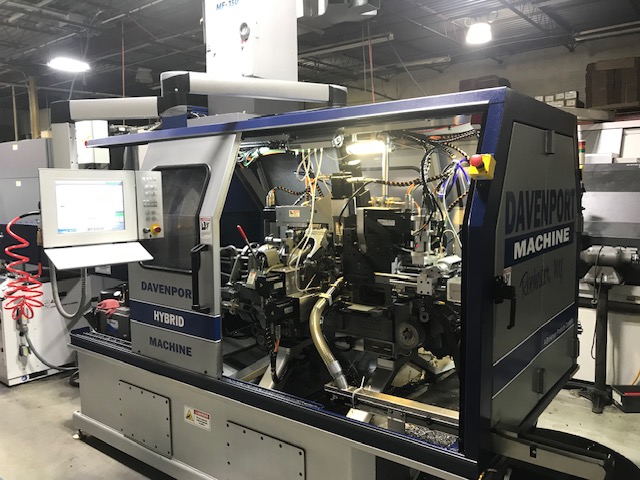

2024 Davenport Hybrid

Multi Spindle

Chip Blaster High Pressure pump

8 Port Programable High Pressure Manifold

1000 PSI

12 Port Coolant Manifold with Shut Off Valves

Parts Catcher

Sub Spindle & Back Working Attachment

Spindle Drive Motor: 5.00 Nm (Nominal Torque)

Max. Speed: 5000 RPM

Feed Motors (X & Z): 2.1 Nm3000 RPM (X Has Break)

Travel Z: 7.874″ Stroke

Rapid Feed Rate: (Z) : 1000 IPM

Travel X: 4.375″ Stroke

Rapid Feed Rate (X): 200 IPM

Cross Slides

Motors: 2.1 Nm, 3000 RPM ( 4th X Motor Has Break)

1st Travel: 2.625″ Stroke

2nd Travel: 2.000″ Stroke

3rd Travel: 7.400″ Stroke

4th Travel X: 1.750″ Stroke

4th Travel Z: 4.062″ Stroke

Rapid Speed: 200 IPM

Specs to be verified by purchaser

Contact us for more information at

Dan 815-236-1069 worldwddan@gmail.com
