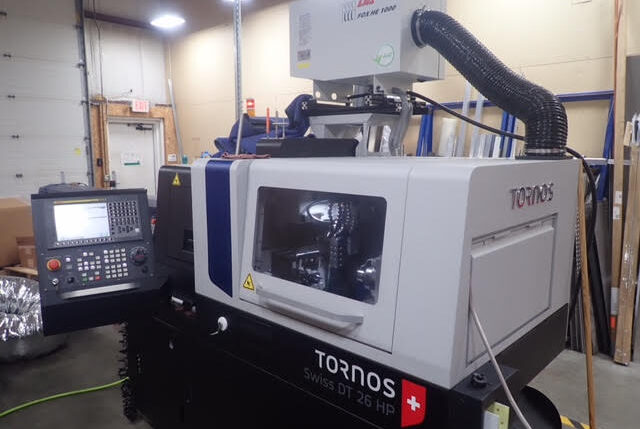

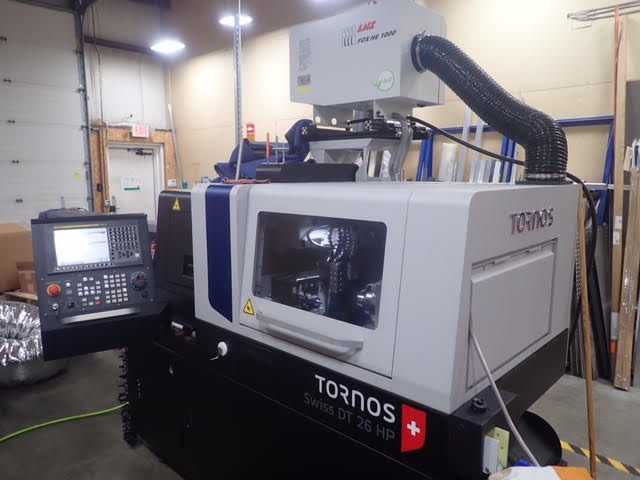

2023 Tornos DT26HP

Sliding Headstock

Control: Fanuc 0iTF Plus

Edge Technologies Minuteman 320SE Magazine BarFeed

B Axis Electrical & Mechanical Kit

5 Linear Axes

Main Spindle:

Rotation Speed: 10,000rpm

Max. Bar Capacity: 25.4mm

C1 Axis Resolution: 0.001 deg.

Bushing:

Speed: 10,000rpm

Guide Bushing Capacity: 25.4mm

Bushing Type: 227T

Part Length 1 Clamping: 210mm

Part Length: 55mm

Tool Plate for 6 Turning Tools: 12x12mm

Motorization for Rotating Tools: S11

Speed: 6,000rpm

Drilling Length: 60mm

Couter Spindle (X4-Z4)

Rotation Speed: 10,000rpm

Capacity: 025.4mm

C4 Axis: 0.001 degree

B Axis 3 Rotating Spindles

Spindle Speed: 6,000rmp max.

Specs to be verified by purchaser

Contact us at

Dan 815-236-1069 worldwddan@gmail.com
