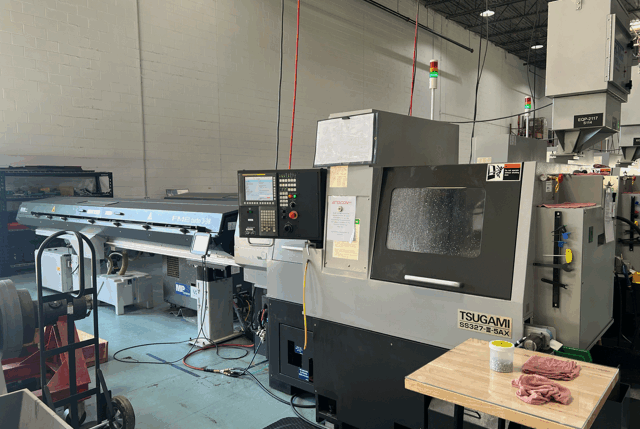

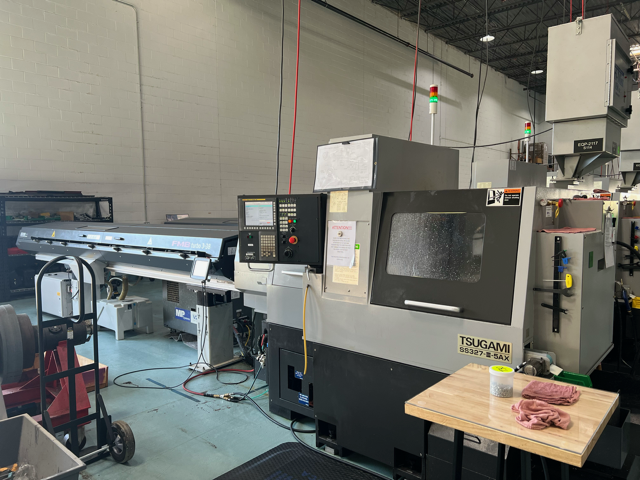

2020 Tsugami SS327-III5AX

There Are Two Available!

Control: Fanuc 31i-B5

FMB Turbo 3-38 Magazine Bar Feed

MP High Pressure

Mist Collector

Fire Trace

Parts Conveyor

Max. Machining Length: 330mm

Chucker Mode: 70mm

Max. Main Spindle Drilling Diameter: 12mm

Max. Main Spindle Tapping Diameter: M10

Max. Back Spindle Chucking Diameter: 32mm

Max. Back Spindle Drilling Diameter: 10mm

Max. Back Spindle Tapping Diameter: M8

Max. Tool Spindle Slotting Cutter Diameter: 45mm

Max. Back Drilling Diameter: 8mm

Max. Back Live Tapping Diameter: M6

Main Spindle Speed: 200 to 8,000 min-1

Back Spindle Speed: 200 to 8,000 min-1

Total Tool Number: 38

Rapid Traverse Rate: 35m/min

B-Axis Tool Spindle Speed: 7,000RPM

Spindle Index: C1 Axis and C2 Axis

Specs to be verified by purchaser

Contact us for more information at

Dan 815-236-1069 worldwddan@gmail.com
